To effectively assess air conditions in a space, use a humidity and temperature diagram that allows you to visualize critical data points such as moisture content and dry-bulb temperature. These visuals are invaluable for HVAC engineers and technicians working to optimize heating, ventilation, and air conditioning systems.
Begin by identifying the axes of the diagram: the horizontal axis represents dry-bulb temperature, while the vertical axis shows moisture content. Understanding the intersection of these two variables helps determine the energy requirements for cooling or heating air. This method simplifies troubleshooting when addressing issues like humidity control in different environments.
One of the most common mistakes when interpreting this diagram is not accurately matching the data points. Make sure to align temperature and moisture values precisely on the grid for the correct reading. Any deviation from this could lead to inaccurate conclusions about system performance and indoor air quality.
How to Use a Printable Temperature and Humidity Diagram

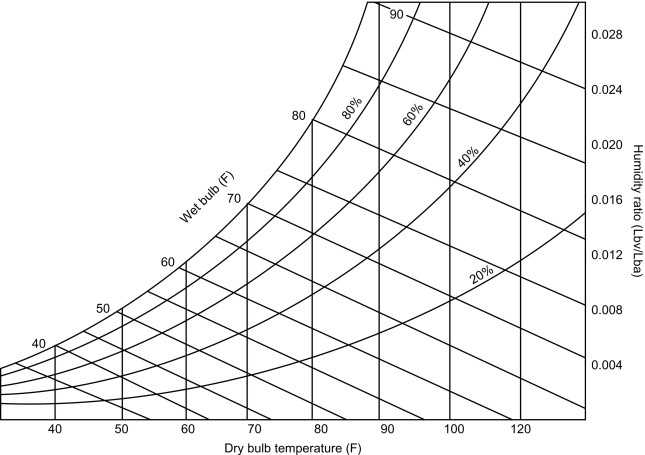

For accurate air quality control, print and use a temperature and humidity diagram to easily access key values such as dry-bulb temperature, wet-bulb temperature, and moisture content. To get started, ensure that the diagram is clearly marked with all relevant data points. Having this tool on hand helps professionals quickly analyze indoor air conditions without relying on complex software.
When working with the diagram, focus on the intersection between temperature and moisture content. To find specific values, trace your data along the corresponding lines on the grid. For example, if you know the temperature and relative humidity of the room, locate those values on the diagram to determine the dew point or the moisture content. This can guide decisions related to heating, cooling, and ventilation systems.
Printing the diagram for use on-site can significantly speed up the process of diagnosing air quality issues. By using the physical chart, technicians avoid having to access digital tools during each step, allowing for faster troubleshooting. Make sure the printed version is legible, with clear lines and markers, to ensure accurate readings even under varying conditions.
How to Use a Printable Temperature and Humidity Diagram for HVAC Design
Begin by locating the dry-bulb temperature and relative humidity of the air in your space. These values are typically measured using a thermometer and a hygrometer. Once obtained, plot these values on the grid, with temperature along the horizontal axis and moisture content along the vertical axis. This allows for a quick analysis of the air’s properties and helps guide the next steps in system design.
Next, identify key points on the diagram such as the dew point, wet-bulb temperature, and moisture content. These values are important for calculating the required energy for heating or cooling the air. By understanding the relationship between temperature and moisture, engineers can determine the capacity needed for heating or cooling equipment.
When designing an HVAC system, it’s important to focus on the condition of the air at both entry and exit points. Use the diagram to assess the air conditions entering the system and compare them with the desired conditions after treatment. This helps in determining the necessary adjustments to temperature, humidity, and airflow to achieve optimal indoor conditions.
The diagram also serves as a tool for selecting the right components for the HVAC system. For example, if the air entering the system has high moisture content, a dehumidifier may be needed to reduce humidity levels before further processing. Similarly, if the air is too dry, humidifiers can be added to bring the moisture content to a desired level.
Incorporating the diagram into your design process also allows for more precise control over temperature and humidity levels. By adjusting airflow rates and equipment size based on the diagram’s data, engineers can optimize the performance of the HVAC system, ensuring energy efficiency and comfort.
Another key benefit of using the diagram is its ability to assist with troubleshooting. If an HVAC system is not achieving the desired temperature or humidity levels, the diagram can quickly reveal whether the issue lies in the system’s capacity, airflow, or settings. By comparing actual air properties with those indicated on the diagram, problems can be diagnosed and resolved more efficiently.
Finally, the printable version of the diagram allows for easy reference in the field. When working on-site, technicians can use a printed copy to quickly cross-check air conditions and make informed decisions. Having a physical copy of the diagram ensures that critical data is always accessible during system design, installation, and maintenance.
